Motivation
#

The first question when beginning something is asking yourself why? In this case, the reason was more curiosity than anything specific. I run Proxmox on my old gaming laptop and only really use it for random experiments. It has quite a bit of power for that and seems to work great. Given that it is a gaming laptop, it has a dedicated graphics card inside, and I wondered if I would be able to pass it through to a VM to be able to do things like run Windows and play games or run Linux and try some machine learning with CUDA.

I had never done this before, mainly because everywhere you look on the internet says it is impossible. And while I found out it is not impossible, it definitely was not easy to figure out and some of these techniques are very recent in their publication.

Before you Start
#

Things to know is that this may or may not work for you. If you have the exact same laptop as me: Dell G5 15 5587 with Nvidia GTX 1060 6GB then it probably will. Otherwise your mileage may vary but this technique seems universal from what I gathered during research.

Certain Optimus laptops are either muxed or muxless. What does that mean? Basically it means that on some laptops the dedicated Nvidia GPU is wired directly to the HDMI port on the laptop whereas on others it is not. That doesn’t mean all hope is lost though as there is a way to get the integrated Intel graphics working in addition as well, but it is a lot more effort that I did not end up needing to do. I will leave the resources I used at the end of the post for anyone who is curious and if enough people are interested I can also make a post on that.

Getting Started
#

Obtaining the vBIOS
#

So the first thing you will need when starting is a copy of the vBIOS of your GPU. For me, most of the ways to do this online did not work. I would get a vague Input/Output Error when trying to perform it in Linux.

The way I was able to do it was weird but works flawlessly and I discovered it here on an old forum post

Essentially, for some reason, the Nvidia drivers place a hexdump of vBIOS of the card in a registry key in Windows.

First thing you want to do is boot into Windows. Once in Windows, make sure you have the Nvidia drivers installed.

With that done, next thing you want to do is try and save a specific registry file that should look like this:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{4d36e968-e325-11ce-bfc1-08002be10318}\0002\Session

I had to switch out the 0002 to 0001 but whichever number has the Session key should be what you want. Export that key and save it somewhere.

Extracting from the Registry Key Method 1
#

The easiest way to do this next step is to use this command that I made for macOS (but I think should work on Linux as well?):

echo -e -n "\x$(iconv -f UTF-16 -t US-ASCII vbios.reg | tr -d '\n' | tr -d '\r' | awk -F: '{print $2}' | awk -F'"' '{print $1}' | tr -d ' ' | tr -d '\\' | sed 's/,/\\x/g')" > vbios.bin

You’ll know you did it right because when you run the file command it should report something like:

root@proxmox:/# file vbios.bin
vbios.bin: BIOS (ia32) ROM Ext. IBM comp. Video "IBM VGA Compatible\001" (211*512) instruction 0xeb4b3734; at 0x170 PCI NVIDIA device=0x1c20 PRIOR, ProgIF=3, at 0x40 VPD, revision 3, code revision 0x3, last ROM, 3rd reserved 0x8000

And the file size for me was 262144 bytes.

Extracting from the Registry Key Method 2
#

If for some reason that doesn’t work or you want to do it on Windows, the steps are pretty much as follows:

Open the .reg file in Notepad++
Delete these lines:

"vbiosSource"=hex:06
"RmRCPrevDriverVersion"=hex:33,38,38,2e,31,36,00
"RmRCPrevDriverBranch"=hex:72,33,38,38,5f,31,30,2d,35,00
"RmRCPrevDriverChangelist"=hex:7c,d8,5f,01
"RmRCPrevDriverLoadCount"=hex:01,00,00,00

Replace all commas with spaces
Replace all backslashes with nothing
Select everything
Open the HxD Hex Editor and create a new file
Paste it into the hex editor
Save it as vbios.bin

Now the same things should apply from before. I did this second method at first before creating the one liner out of curiosity and spite because I’d rather have a quick way to do things from the CLI than use a GUI.

Proxmox Configuration
#

Okay, now we have the first file we need, which is also the most important.

Proxmox Host Settings
#

First things first, we need to follow the normal Proxmox PCI-E Passthrough Guide.

Getting Hardware IDs
#

So let’s grab some hardware IDs.

Run the lspci command like so and take note of your Nvidia GPU:

root@proxmox:~# lspci -nnk
...
01:00.0 VGA compatible controller [0300]: NVIDIA Corporation GP106M [GeForce GTX 1060 Mobile] [10de:1c20] (rev a1)
	Subsystem: Dell GP106M [GeForce GTX 1060 Mobile] [1028:0825]
	Kernel driver in use: vfio-pci
	Kernel modules: nvidiafb, nouveau
01:00.1 Audio device [0403]: NVIDIA Corporation GP106 High Definition Audio Controller [10de:10f1] (rev a1)
	Kernel driver in use: vfio-pci
	Kernel modules: snd_hda_intel
...

Drivers
#

Ideally you have not installed the nvidia drivers. If you have, I highly recommend uninstalling them now before going any futher:

sudo apt remove 'nvidia*' bumblebee-nvidia primus-nvidia primus-vk-nvidia

If you choose not to do this, and want to simply blacklist the drivers, just know that nvidia also has this weird systemd service called nvidia-persistenced which will simply re-load the kernel module at boot so also disable that if you are leaving the original drivers installed.

And reboot your host to make sure it works.

Kernel Parameters
#

The first thing you need to do is enable IOMMU, so for an Intel CPU add this to the GRUB_CMDLINE_LINUX_DEFAULT line in /etc/default/grub :

intel_iommu=on

And also add this line regardless of processor type in case you want better performance:

iommu=pt

Now run this to update your GRUB configuration:

update-grub2

Kernel Modules
#

Next you need the VFIO kernel modules, so add these lines to /etc/modules :

 vfio
 vfio_iommu_type1
 vfio_pci
 vfio_virqfd #not needed if on kernel 6.2 or newer

And then update your initramfs like so:

update-initramfs -u -k all

And now do a reboot:

reboot

Sanity Check
#

At this point run the following command to make sure the kernel modules are loaded:

lsmod | grep vfio

Setting VFIO IDs
#

This part may be optional, but I set it up so I’m adding it just in case you need it.

Add the following line to /etc/modprobe.d/vfio.conf (creating it if it doesn’t exist and replacing the ids with the ids from your lspci command above):

options vfio-pci ids=10de:1c20,10de:10f1

And now when you reboot, you should see that the kernel driver in use is vfio-pci when running lspci:

root@proxmox:~# lspci -nnk
...
01:00.0 VGA compatible controller [0300]: NVIDIA Corporation GP106M [GeForce GTX 1060 Mobile] [10de:1c20] (rev a1)
	Subsystem: Dell GP106M [GeForce GTX 1060 Mobile] [1028:0825]
	Kernel driver in use: vfio-pci
	Kernel modules: nvidiafb, nouveau
01:00.1 Audio device [0403]: NVIDIA Corporation GP106 High Definition Audio Controller [10de:10f1] (rev a1)
	Kernel driver in use: vfio-pci
	Kernel modules: snd_hda_intel
...

Copying over the vBIOS
#

The last thing to do is to copy over the vBIOS.

Put it in this directory: /usr/share/kvm/ and name it what you want. I named mine vbios_1060.bin

At this point, you should be good to go to create your VMs and get going.

VM Creation and Configuration
#

Proxmox WebUI
#

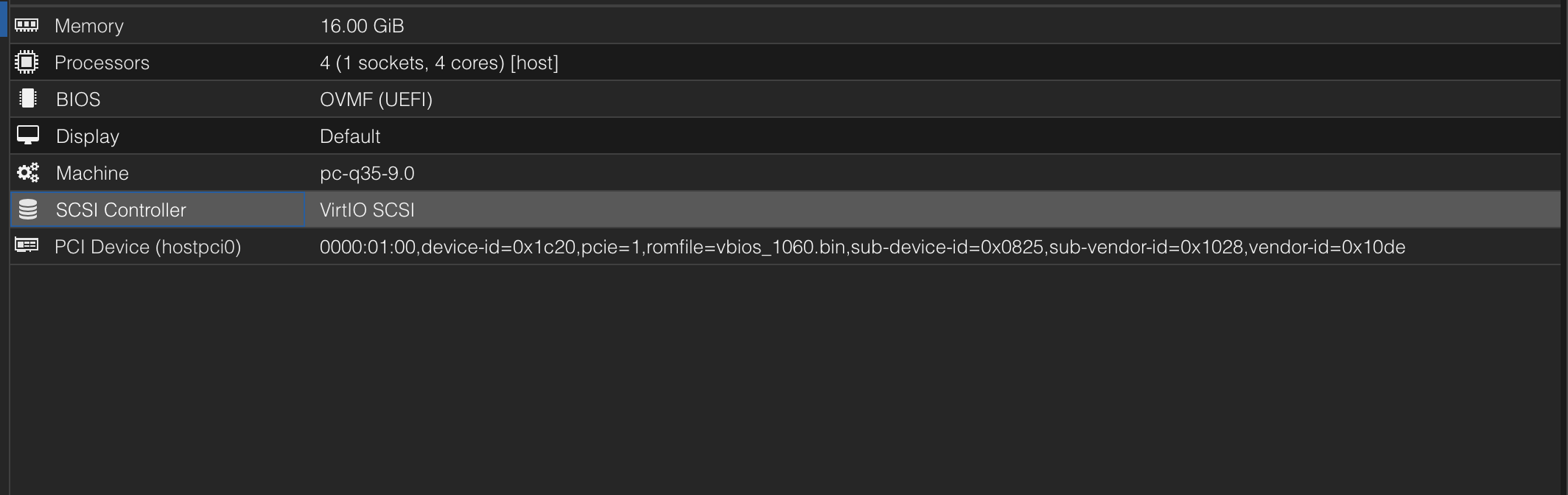

Now in Proxmox, create your VM, but do not start it yet. Here is a picture of all the settings you need (RAM and CPU dedicated is arbitrary althought the CPU should be host):

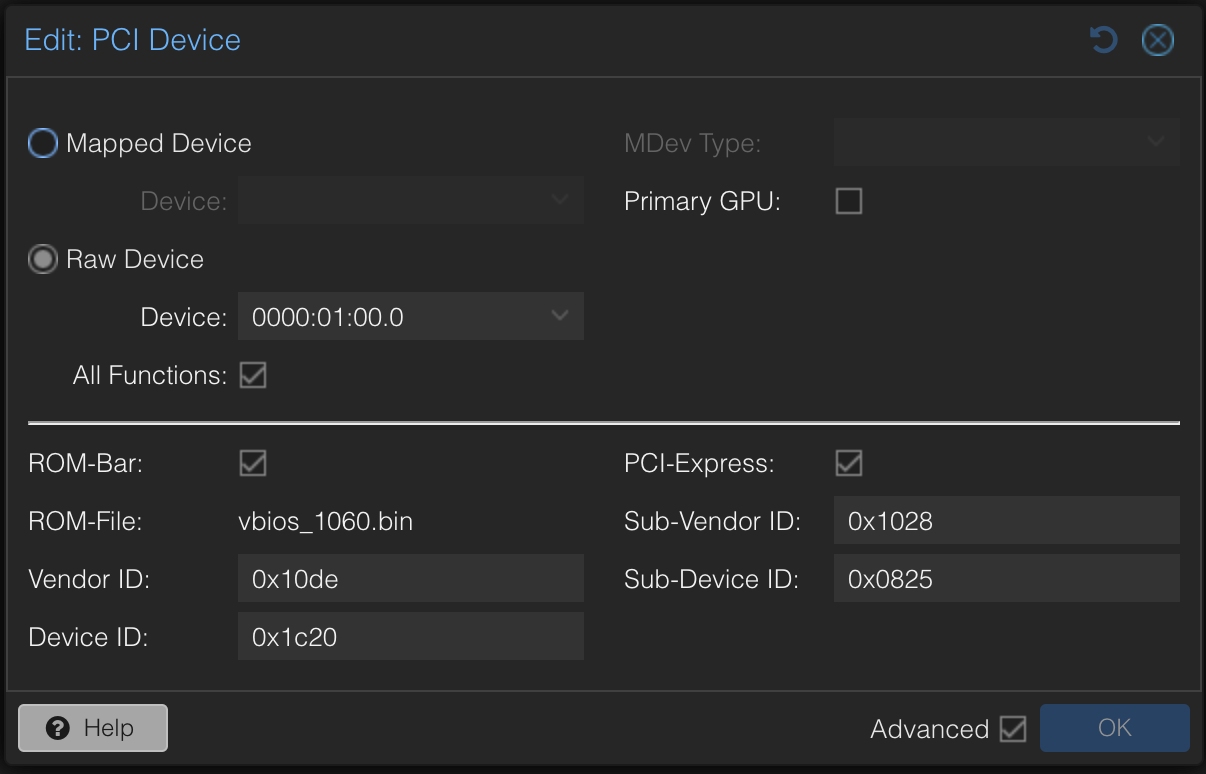

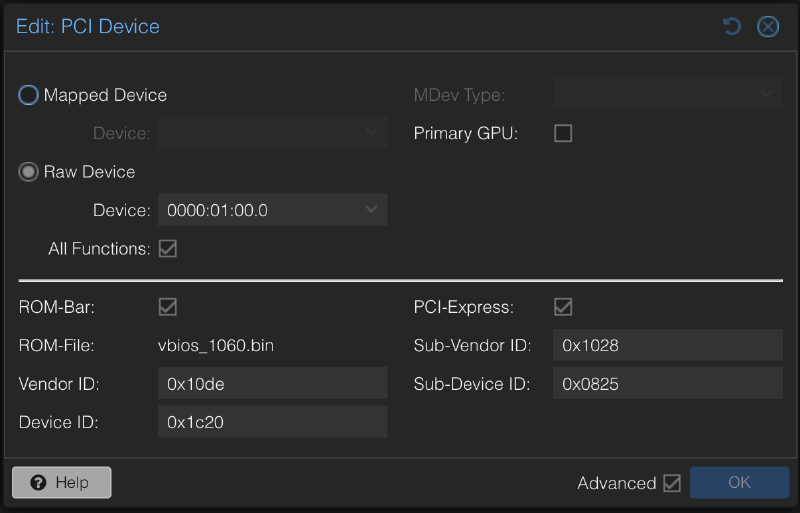

Specifically for the PCI device, you need the following after selecting your card in the dropdown (replacing vendor/device IDs and sub-vendor/device IDs with the output of lspci and the vBIOS name with whatever you named the vBIOS):

Proxmox VM Manual Configuration
#

Now for the magic bits that I pulled from this GitHub repository

Essentially what this is, is the NVIDIA GPU communicates with the system using a specific ACPI method defined within the Device Object. This method is called _ROM and it allows the GPU to access its vBIOS firmware via a fw_cfg object which we also create with the contents of the vBIOS.

In this way, we are able to create this ACPI call functionality without requiring us to recompile OVMF or anything like that.

Here is a diagram courtesy of an LLM:

+-----------------+           +------------+            +---------+
| System           |--------> | ACPI Table  | ------>   | Device  |
+-----------------+           +------------+            +---------+
                                    ^              |
                                    |              | _SB.PCI0.SE0.S00 |
                                    +-------------+    /|\
                                                   |  \
                                                   v   Device Object
 +-------+                +-----------------+       |
 | fw_cfg |--------------->|  fw_cfg binary   |   <-| FWIO (Ports)
 +-------+                 +-----------------+      |
                                                    Field: FSEL, FDAT...

Additionally, the ACPI table adds a battery to your VM which is required for the Windows Nvidia drivers to install properly.

AML Creation
#

Now SSH into your proxmox host, and you will need to create the following file somewhere, replacing \_SB.PCI0.SE0.S00 with the proper values for your card.

Calculating those values can be tricky, and requires being in the VM to see where it maps the card. It doesn’t matter if the card initializes correctly at this point, but you should be able to see it with lspci still.

Once in a Linux VM with the card passed through, run the following lspci command:

astr0n8t@pop-os:~$ lspci -tv
-[0000:00]-+-00.0  Intel Corporation 82G33/G31/P35/P31 Express DRAM Controller
...
           +-1c.0-[01]--+-00.0  NVIDIA Corporation GP106M [GeForce GTX 1060 Mobile]
           |            \-00.1  NVIDIA Corporation GP106 High Definition Audio Controller
...

Now what you want is that value 1c and you want to put it in a hex calculator and bitshift it by 3.

So 1c << 3 which becomes e0 so SE0

And for the second part, I believe it is the rightmost value of 00.0 which is obviously just 0 so S00

A quick way to do this is with python:

python -c 'print(hex(0x1c << 3))'

Save this file with a .asl extension:

DefinitionBlock ("", "SSDT", 1, "DOTLEG", "NVIDIAFU", 1) {
    External (\_SB.PCI0, DeviceObj)

    // NVIDIA GPU stuff
    // The device name is generated by QEMU. See hw/i386/acpi-build.c of QEMU. The number is
    // calculated as (slot << 3 | function), so S00 means slot 0 function 0 and S08 means slot 1
    // function 0. The real one is something like \_SB.PCI0.PEG0.PEGP. Change this if you put your
    // GPU elsewhere in the VM.
    External (\_SB.PCI0.SE0.S00, DeviceObj)
    Scope (\_SB.PCI0.SE0.S00) {
        Name (FWIT, 0) // fw_cfg initialized
        Name (FWBI, Buffer () { 0 }) // fw_cfg binary

        OperationRegion (FWIO, SystemIO, 0x510, 2) // fw_cfg I/O ports
        Field (FWIO, WordAcc, Lock) {
            FSEL, 16, // Selector
        }
        Field (FWIO, ByteAcc, Lock) {
            Offset (1), // Offset 1 byte
            FDAT, 8, // Data
        }

        // Read a big-endian word
        Method (RWRD, 0, Serialized) {
            Local0 = FDAT << 8
            Local0 |= FDAT
            Return (Local0)
        }

        // Read a big-endian dword
        Method (RDWD, 0, Serialized) {
            Local0 = RWRD () << 16
            Local0 |= RWRD ()
            Return (Local0)
        }

        // Read certain amount of data into a new buffer
        Method (RBUF, 1, Serialized) {
            Local0 = Buffer (Arg0) {}

            For (Local1 = 0, Local1 < Arg0, Local1++) {
                Local0[Local1] = FDAT
            }

            Return (Local0)
        }

        // Find a selector by name
        Method (FISL, 3, Serialized) {
            FSEL = 0x19
            Local0 = RDWD () // Count

            For (Local1 = 0, Local1 < Local0, Local1++) {
                Local2 = RDWD () // Size
                Local3 = RWRD () // Select
                RWRD () // Reserved
                Local4 = ToString (RBUF (56)) // Name

                If (Arg0 == Local4) {
                    Arg1 = Local3
                    Arg2 = Local2
                    Break
                }
            }
        }

        // Initialize ROM
        Method (RINT, 0, Serialized) {
            If (!FWIT) {
                FWIT = 1

                // Checking for fw_cfg existence
                If (!CondRefOf (\_SB.PCI0.FWCF)) {
                    Return ()
                }

                FISL ("opt/com.lion328/nvidia-rom", RefOf (Local0), RefOf (Local1))

                If (Local0) {
                    FSEL = Local0
                    CopyObject (RBUF (Local1), FWBI)
                }
            }
        }

        Method (_ROM, 2) {
            RINT ()

            Local0 = Arg1

            // Limit the buffer size to 4KiB per spec
            If (Arg1 > 0x1000) {
                Local0 = 0x1000
            }

            If (Arg0 < SizeOf (FWBI)) {
                Return (Mid (FWBI, Arg0, Local0))
            }

            Return (Buffer (Local0) {})
        }
    }

    // Fake battery device at LPC bridge (1f.0)
    External (\_SB.PCI0.SF8, DeviceObj)
    Scope (\_SB.PCI0.SF8) {
        Device (BAT0) {
            Name (_HID, EisaId ("PNP0C0A"))
            Name (_UID, 1)

            Method (_STA) {
                Return (0x0F)
            }
        }
    }
}

Now once that file is saved, you need to install the acpica-tools package:

apt install acpica-tools

And then run iasl on the .asl file:

iasl /usr/share/kvm/ssdt.asl

Which should produce /usr/share/kvm/ssdt.aml which is the compiled version of the file.

VM File Edit
#

Now open up the configuration file of your VM in a text editor, it should be in /etc/pve/qemu-server/<vm-id>.conf

And make the following changes (replacing filenames as needed):

args: -acpitable 'file=/usr/share/kvm/ssdt.aml' -fw_cfg 'name=opt/com.lion328/nvidia-rom,file=/usr/share/kvm/vbios_1060.bin'
cpu: host

Booting the VM
#

And now you should be good to boot the VM!

If using Linux, I recommend using Pop!_OS initially to test things out as they pre-package the Nvidia drivers and make this simple.

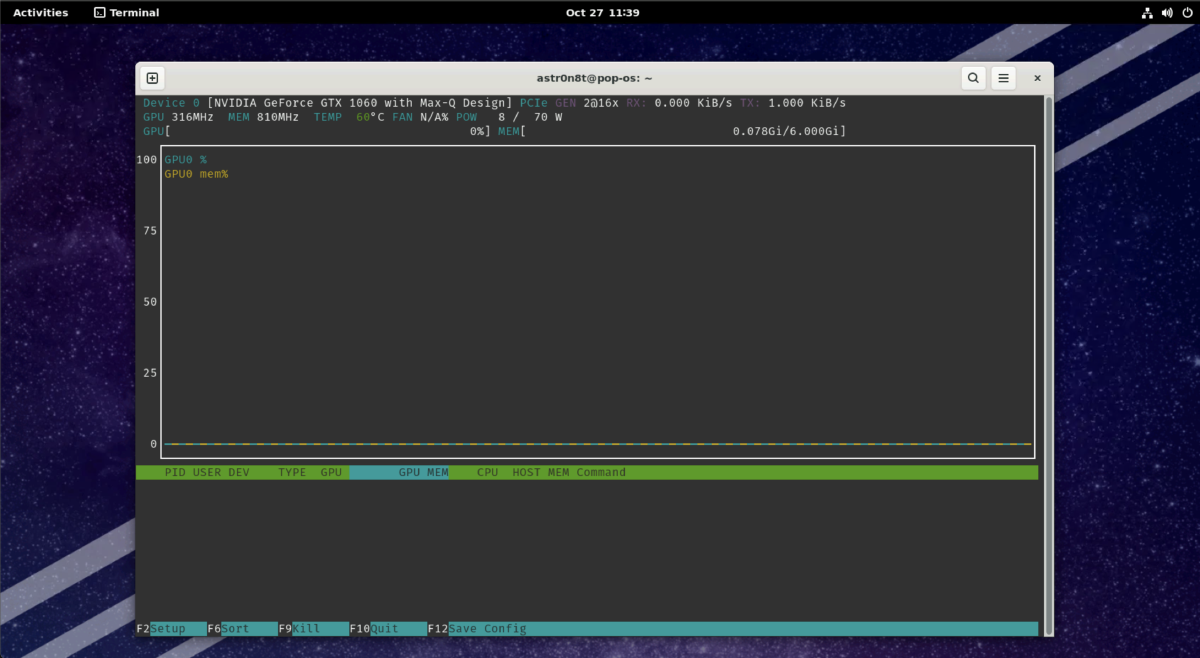

As you can see from this screenshot, its running in this guest with the nvidia driver loaded:

If you are using Windows, then make sure to install the Nvidia drivers from their website and it should install properly and work, and you should see the device in Device Manager.

Headless Mode
#

If you want to use the HDMI port on your device, you should be able to do so now, and you can even disable the Proxmox built-in display by checking the Primary GPU field in your PCI-E passthrough dialog in the WebUI. Make sure to pass through a USB keyboard and mouse if you want to do this.

When you do that, you should see output on your connected display and it shouldn’t seem like you’re in a VM at all other than the fact that you know you are.

Troubleshooting
#

I recommend starting your VM with the CLI:

qm start <vm-id>

This will print out any errors immediately to the console and allows for easier and faster debugging.

Sometimes, my Proxmox host prints a weird ACPI error to the console and crashes. This usually happens when booting a new VM when the GPU has been powered down abruptly and not initialized correctly.

Further Research
#

If at this point, you can’t get something to work or you want to figure out how to get your Intel integrated graphics passed through, here are all the links from my research: (if someone needs it I can create a guide for Intel passthrough as I did get it to work but I just don’t use it personally and right now it involves patching and re-building OVMF which seemed like a lot for this guide)
